30-80gsm Food Paper Bag Making Machine Kraft Automatic Paper Bag Machine
-
High Light
80gsm Food Paper Bag Making Machine
,Kraft Food Paper Bag Making Machine
,30gsm Automatic Paper Bag Machine
-
Name30-80gsm Food Paper Bag Making Machine Kraft Automatic Paper Bag Machine
-
Speed50-610 Pcs/min Or 120m/min
-
Gusset Width20-120mm
-
Bag Mouth Height15/20mm
-
Material Thickness30-80gsm
-
Roll Width100-960mm
-
Roll Diameter200-1200mm
-
Place of OriginChina
-
Brand NameFect
-
CertificationCE
-
Model NumberPF-350J ood Paper Bag Making Machine With Printer
-
Minimum Order Quantity1 Set / Automatic Kraft Material Food Paper Bag Making Machine With Printer
-
PriceUSD 84000 To USD 100000 Per Set
-
Packaging DetailsExport-Standard And Sea-Worthy Wooden Case / Automatic Kraft Material Food Paper Bag Making Machine With Printer
-
Delivery Time60 Day
-
Payment TermsL/C, T/T, Western Union, MoneyGram
-
Supply Ability30 Sets Per Month/ Automatic Kraft Material Food Paper Bag Making Machine With Printer
30-80gsm Food Paper Bag Making Machine Kraft Automatic Paper Bag Machine
Automatic Kraft Material Food Paper Bag Making Machine With Printer
♦Feature♦
1. Available Italy SELECTRA Material edge rectify system, substantially cut off the edge alignment time
2. Available Germany LENZE Motion Controller( PC), Integrated with optical fiber,ensure the machine with high speed steadily.
3. Available Germany LENZE Servo Motor Integrated With Germany Original SICK Rectifying Photo Sensor, ensure the printed paper length under tracking precisely.
4. Available material hydraulic loading up and down structure, integrated with constant tension control unwinding system.
Automatic Kraft Material Food Paper Bag Making Machine With Printer is a equipment to make V bottom paper bag. Its feeding material is blank or printed roll for blank or printed, material could kraft paper, slick apper, coated paper and etc. 35-80gsm paper is workable. For this machine, if customer need, it could add printing unit, PLASTIC WINDOW UNIT or Hot needle film perforation on line.
♦Technical Parameters♦
|
Model |
PF-350J Automatic Kraft Material Food Paper Bag Making Machine With Printer |
|
Machine Speed |
50-610 pcs/min or 120 m/min |
|
Cutting Length(C) |
175-715mm |
|
Bag Length L |
170-710mm |
|
Bag Width W |
70-350mm |
|
Gusset Width G |
20-120mm |
|
Bag Mouth Height H |
15/20mm |
|
Material Thickness |
35-80g/m² |
|
Scroll Width |
100-960mm |
|
Scroll Diameter |
200-1200mm |
|
Scroll Core Diameter |
76mm |
|
Rolling Film Width |
50-200mm |
|
Film Thickness |
0.022-0.035mm (OPP,PET) |
|
Rolling Film Diameter |
500mm |
|
Rolling Film Core Diameter |
76mm |
|
Power Supply |
3 phase 380V 26kw |
|
Air Pressure Supply |
≥0.12m3/min,0.6-1.2MP |
|
Machine Weight |
6700kg |
|
Machine Size |
8800x2300x1900mm |

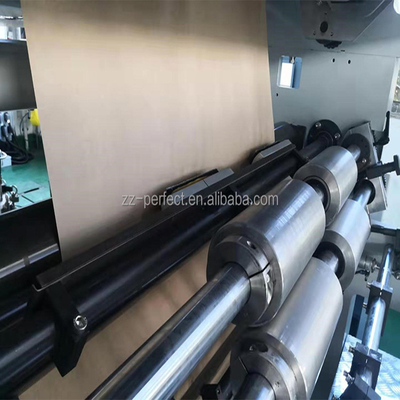

♦Details♦
♦Company Information♦
Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper bag machine, paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
♦Our service♦
1.Pre-Sales Service:
Our service team will glad to reply inquiry and consulting support in every way as soon as we can, we can support sample testing.
2. Package & Delivery
Our service team will pack goods under export standard, and prepare delivery in time as agreement.
3.Technical Support:
Free Replacement of accessories within 1 year
Remote assistance,24 hours online technical service
Detailed operation video
Our products are sold all over the world, you can rest assured.
