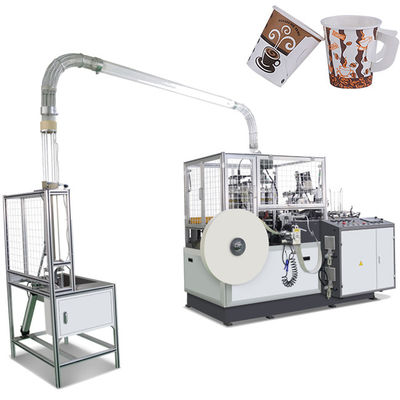

80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine

80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine

  • Name
    Open Cam Paper Cup With Handle Making Machine
  • Suitable Paper Weight
    155-380gsm
  • Raw Material
    PE Coated Paper Or PLA Paper
  • Speed
    75 Pcs / Min
  • Automatic
    Fully Automatic
  • Control System
    Programmable Logic Controller
  • Air Out-put
    0.6m3/minute
  • Dimension
    2250 * 1241 * 1900mm
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PFD - 12 Ultrasonic Open Cam Paper Cup With Handle Making Machine
  • Minimum Order Quantity
    1 Set
  • Price
    USD 14500 To 16000 Per Set
  • Packaging Details
    Export-Standard And Sea-Worthy Wooden Case
  • Delivery Time
    30 Work Day
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    35 Sets Per Month

80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine

80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine



This machine could make both handle paper cup and paper cup without handle, it use table style, To separate mould system from transmit system ,the transmission parts are set inside of machine body which under the table.



Technical Parameters



Suitable Size 1.5 oz-16oz(mold changeable)
Raw Material

150-380gsm

 PE coated paper/ PLA paper

Ration Productivity pcs/ min
Working Air Source

Air pressure:0.4Pa

Air Out-put:0.6m3/minute

Total power 8 KW
N.W./G.W. 2500kg
Electric Power 220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type
Overall dimensions 2250L*1241W*1900H(mm)
Note Machine technology will be updated, the information is for reference only

80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine 0
80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine 1





♦ Advantages ♦



1. Three times paper feeding system,multiple mediation, to avoid unevenness on both sides of the paper cup.



2. Slotted wheel-make the machine inside-connection more tightly, and it is not easy to loosen during the operation of the machine.



3. Single plate bottom Punching and cup route offset the problem of paper jam and flip bottom.



4. Make the machine more perfect and improve production capacity.



5. Automatic time control of oil lubrication for full machine, avoid the trouble of manual oil lubricating , make the machine running more stable.



The machine are combined with



1. Whole body structure under automatic spray lubrication system



2. Vertical shaft transmission system



3. Open cam system



4. Gear system. All molds are set-up the table, which are easy for operation





♦ Details ♦





Transmission structure



Vertical shaft gear transmission system,cylindrical indexing cam inner structure, to improve synchronization performance of transmission precision,improve coordination between different transmission ,avoid interference the running parts,remove the shake during chain transmission,make the machine life longer ,running more stable.



8 station mold



80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine 2



Open cam



80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine 3



Circulating oil pump filtration

80 Pcs / Mins Ultrasonic Open Cam Paper Cup With Handle Making Machine 4







♦FAQ♦



Q1: Are you trading company or manufacturer  ?



A: We are factory and have export team, welcome to visit our factory, we can pick you up at the airport.



Q2 : Do you have relevant certificate?



A: Yes, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q3 : What payment terms are accepted?



A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
