High Light
120g/M2 Paper PE Coating Machine
,Paper PE Coating Machine ODM
,Double Side pe coating machine
-
Name180 M / Min Double Side Extrusion Laminate PE Coating Machine For Paper
-
Laminating Speed170-180m/min
-
Main Motor Power55kw
-
Diameter Of Main Unwinding1300-1700mm
-
Finished Film Width800-1700mm
-
Design Line Speed210m / Min
-
Adopt MaterialPE Paper \ Non Woven \ Aluminum Foil
-
Usable ResinLDPE PP EVA
-
Machine ControlProgrammable Logic Controller
-
Base Material35～425g / M² Paper，Mainly For 40～120g / M²
-
Place of OriginChina
-
Brand NameFect
-
CertificationCE
-
Model NumberPF-1700
-
Minimum Order Quantity1 Set
-
PriceUSD 82000-USD 92000
-
Packaging DetailsWooden Case
-
Delivery Time60 Work Days
-
Payment TermsT/T, L/C, Western Union, Money Gram, or Credit card.
-
Supply Ability30 Sets Per Month

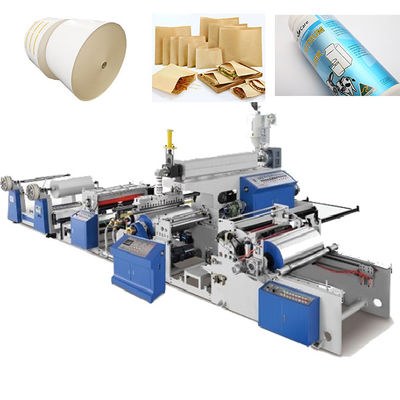

Double Side 40-120g/M2 Paper PE Coating Machine OEM ODM
180 M / Min Double Side Extrusion Laminate PE Coating Machine For Paper
180 M / Min Double Side Extrusion Laminate PE Coating Machine can accept LDPE,PP,EVA,EAA, etc. lamination grade material,Use for film(BOPP,BOPET,CPP,CPE, etc) Paper,Aluminum Foil,Non-woven, etc. as base material for compounding lamination.Widely used in medical packaging,food packaging,office packaging,industrial packaging and other packaging.
♦Technical Parameters♦
| Screw diameter | φ105mm |
| L/D | 33:1 |
| Finished film widts | 800-1700mm |
| Lamination thickness | 0.01-0.10mm |
| Usable resin | LDPE, LLDPE, PP, EVA, EAA |
| Design line speed | 210m/min |
| Max extrusion capacity | 330kg/h |
| Main motor power | 55kw |
| Diameter of main unwinding | 1300mm |
| Diameter of winding | 1300mm |
| Overall size | 10000×12000×3200 mm |
| Power supply | 380/3/4/50(Volt/Ph/Line/Hz) |
| Working Speed | 170-180m/min, based on detail material |
| Roller Width | 1700 mm |
| Extrusion Material |
LDPE PP EVA EMAA, EAA And Other Lamination Material |
| Extrusion resin thickness | ±5% |
About Control System
Entire Machine Data can set in PLC Touch screen,PLC Control Converter,Drive by Motor
| 1)PLC:Synchronous control for Process Data Control and Thickness. |
| a,10″Touch screen Control |
| b,Compounding Part Process and Speed Showing,Screw Rotate and Speed Showing,Extruder & T-Die Temperature Setting and adjusting, entire machine speed adjusting all in Center Control PLC.Pre-Load your process data in Touch Screen(Paper Width,Lamination Thickness)can allow you to work with Synchronization of Compounding Speed,Screw Speed and Thickness of Automatic calculus accurate(For Example: Paper Width 1000mm,lamination thickness 20µm,Set above data and choose Synchronization Calculation On,Then entire machine running you only need to press speed up or speed down button,to make product in precision automatic control, and can make sure thickness remain even while speed down or up),also you can work with separate control. |
♦Application♦
This PE Coating Machine is suitable for PE coating, applied in the field of paper cup, paper bowl,aluminum foil etc.
♦Details♦
♦About Us♦
Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
♦FAQ♦
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Our products are sold all over the world, you can rest assured.
